TIANMA 7inch TM070JDHG30 LCD Panel

Product Categories
Mega Source Elec.Limited
Contact Now

TIANMA 7inch TM070JDHG30 LCD Panel

Place of Origin : Japan

Brand Name : TIANMA

Certification : RoHS Compliant

Model Number : TM070JDHG30

MOQ : 1 PCS

Price : Pls Contact sales team

Packaging Details : MODULE

Delivery Time : stock

Payment Terms : T/T , Paypal, Western Union Escrow etc.

Supply Ability : 1000

Panel Model : TM070JDHG30

Panel Brand : TIANMA

Descrition : a-Si TFT-LCD ,7.0 inch, 1280×800

Panel Type : a-Si TFT-LCD

Contact Now

TIANMA 7inch TM070JDHG30 LCD Panel

Specification for TM070JDHG30:

TM070JDHG30 Basic Information

Panel Model

TM070JDHG30

Panel Brand

TIANMA

Descrition

a-Si TFT-LCD ,7.0 inch, 1280×800

Panel Type

a-Si TFT-LCD

Operating Temperature

-20 ~ 70 °C

Storage Temperature

-30 ~ 70 °C

TM070JDHG30 Mechanical Features

Dot Resolution

1280(RGB)×800 (WXGA)

Pixel Configuration

RGB Vertical Stripe

Pixel Density

217 PPI

Aspect Ratio

16:10 (H:V)

Form Factor

Flat Rectangle Display

Dot Pitch

0.039×0.117 mm (H×V)

Pixel Pitch

0.117×0.117 mm (H×V)

Weight

120g (Typ.)

Surface

Hard coating (3H)

Active Area

149.76×93.6 mm (H×V)

Bezel Area

152.76×96.6 mm (H×V)

Outline Dimension

161×107 mm (H×V)

Outline Depth

3.35 (Typ.) mm

Holes & Brackets

Without

Landscape or Portrait

Landscape type

Touch Panel

Without

TM070JDHG30 Optical Features

Display Mode

SFT, Normally Black, Transmissive

Brightness

400 cd/m² (Typ.)

Contrast Ratio

800 : 1 (Typ.) (Transmissive)

Display Color

16.7M (8-bit)

Color Gamut

50% NTSC (CIE1931)

Response Time

35 (Typ.)(Tr+Td)

Viewing Angle

88/88/88/88 (Typ.)(CR≥10) (L/R/U/D)

Viewing Direction

Symmetry

White color Chromaticity

Wx:0.306; Wy:0.329

White Variation

1.33/1.43 (Typ./Max.)(9 points)

Sunlight Readable

N

TM070JDHG30 Electronics Feature

Vertical Frequency

60Hz

Reverse Scan

No

TM070JDHG30 Backlight System

Lamp Position

Edge light type

Lamp Type

WLED

Lamp Amount

3S7P

Lamp Shape

Array

Lamp Life Time

30K(Typ.) (Hours)

Lamp Voltage

9..3/10.2V (Typ./Max.)

Lamp Current

140mA (Typ.)

Lamps Power Consumption

1.3/1.43W (Typ./Max.)

Interface Type

Included in panel signal interface

Lamp Driver Board

No

TM070JDHG30 Signal Interface

Signal Category

LVDS

Signal Class

LVDS (1 ch, 8-bit)

Input Voltage for Panel

3.3/10.4/16/-6.8V (Typ.)(VDD/AVDD/VGH/VGL)

Input Current for Panel

53/41.5/0.41/0.41mA (Typ.)(IDD/AIDD/IGH/IGL)

Interface Type

FPC

Below is some of our other LCD panel hot offer,pls check if you need any of them:

CLAA057VA01CW

CPT

5.7"

640×480

COM41H4M31XLC

4.1"

320×240

NL2432HC22-44B

NLT

3.5"

240×320

COM50H5125XLC

5.0"

320×240

LS047T1SC02

SHARP

4.7"

1080×1920

LQ030B1DC50J

SHARP

3.0"

320×240

LW700AT6005

INNOLUX

7.0"

800×480

AT056TN52 V.5

INNOLUX

5.6"

640×480

TX09D80VM3CCA

KOE

3.5"

240×320

LQ038Q7DB03

SHARP

3.8"

240×320

LQ065T9BR53U

SHARP

6.5"

400×240

TM035WDH01-00

TIANMA

3.5"

480×640

ET035A6448-1

3.5"

480×640

COM41T4M28XLC

4.1"

320×240

NL2432HC22-45A

NLT

3.5"

240×320

L5S30878P01

Epson

3.0"

240×400

TFT-GG1P0553UTSW-W-E

1.7"

176×220

TD043MTEA1

TPO

4.3"

800×480

TX09D80VM3CEA

KOE

3.5"

240×320

TS047NAARB02-00

TIANMA

4.7"

480×272

LTE430WQ-F0C

SAMSUNG

4.3"

480×272

TM047NDH01

TIANMA

4.7"

480×272

LQ043T1DG28

SHARP

4.3"

480×272

DT24032035-41

3.5"

240×320

LQ065T5DG04

SHARP

6.5"

480×234

LB070WV1-TD04

LG Display

7.0"

800×480

LQ079L1SX01

SHARP

7.9"

1536×2048

LS013B7DH01

SHARP

1.26"

144×168

A035VL01 V3

AUO

3.5"

800×480

A035VL01 V2

AUO

3.5"

800×480

A035VL01 V1

AUO

3.5"

800×480

A035VL01 V0

AUO

3.5"

800×480

A035VW01 V0

AUO

3.5"

800×480

LQ065T9BR55U

SHARP

6.5"

400×240

AMS309PW01-0

SAMSUNG

3.1"

720×720

COM50T5124GTC

5.0"

320×240

TX09D70VM1CBC

KOE

3.5"

240×320

AMS353FD09-0

SAMSUNG

3.5"

480×800

LQ088H9DR01

SHARP

8.8"

640×240

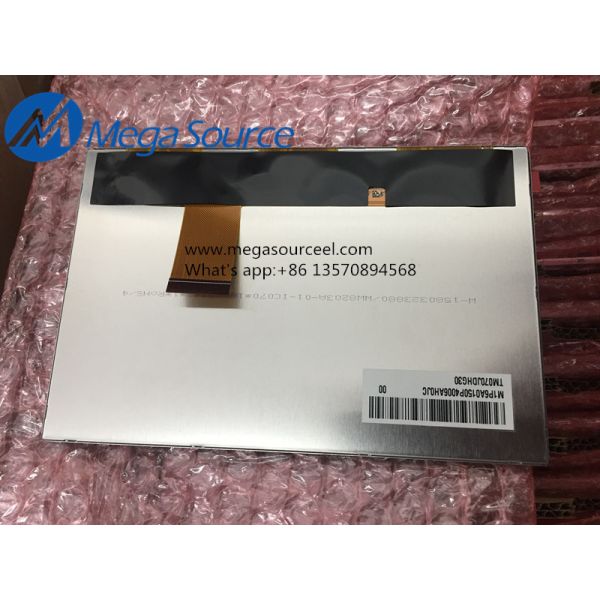

Detail picture for TM070JDHG30:
